RheinTacho EchoTach Digital Optical Tachometer
Compact, Reliable Non-Contact RPM Measurement
The RheinTacho EchoTach is a robust, handheld optical tachometer designed for the fast and accurate measurement of rotational speed without requiring physical contact with the target. Its compact, lightweight, pocket-sized design makes it ideal for maintenance professionals, field service technicians, and workshop environments where portability and convenience are essential.
Using advanced optical sensing technology, the EchoTach measures speeds from 1 to 60,000 RPM with exceptional accuracy. A high-intensity red LED projects a beam onto a reflective target attached to the rotating component, while the reflected signal is detected and processed to provide instant speed measurements.
Designed for ease of use, the EchoTach can perform measurements from distances of up to 450 mm and over a wide measuring angle, allowing users to safely evaluate rotating machinery without interrupting operation. Its matched optical system and powerful LED technology provide excellent resistance to ambient light interference, ensuring reliable readings in a variety of industrial environments.
Manufactured in Germany, the EchoTach combines precision engineering, rugged construction, and dependable performance, making it suitable for routine maintenance, machine commissioning, process monitoring, quality control, and laboratory applications.
Key Features
- Non-contact optical RPM measurement
- Wide measuring range from 1 to 60,000 RPM
- Measurement distance up to 450 mm
- High-intensity red LED optical system
- Wide measurement angle for enhanced usability
- Excellent resistance to ambient light interference
- Compact, lightweight, pocket-sized design
- Robust German manufacturing quality
- Ideal for field, workshop, and industrial applications
Typical Applications
The EchoTach is commonly used to measure the rotational speed of:
- Electric motors
- Pumps
- Fans and blowers
- Turbines
- Mixers
- Centrifuges
- Production machinery
- Test and laboratory equipment
Whether used for preventative maintenance, troubleshooting, commissioning, or quality assurance, the RheinTacho EchoTach delivers dependable, accurate speed measurement in a compact and easy-to-use instrument.
| Feature | Rotaro T Digital Hand Tachometer | Rotaro Handheld Tachometer | Mechanical Precision Hand Tachometer (HTM100M / HTM500M) | Redpoint Handheld Tachometer | EchoTach Digital Optical Tachometer |
|---|---|---|---|---|---|
| Measurement Type | Optical & Mechanical | Optical & Mechanical | Mechanical Only | Optical Only | Optical Only |
| Non-Contact RPM Measurement | ✅ | ✅ | ❌ | ✅ | ✅ |
| Contact RPM Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Surface Speed Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Length Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Measuring Wheel Compatible | ✅ | ✅ | ✅ | ❌ | ❌ |
| Continuous Material Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Yarn, Wire & Fibre Measurement | ✅ | ✅ | Limited | ❌ | ❌ |
| Display Type | 5-Digit LCD | Digital LCD | Analogue Dial | 5-Digit LCD | Digital LCD |
| Optical Measurement Distance | Up to 600 mm | Up to 600 mm | N/A | Up to 600 mm | Up to 450 mm |
| RPM Measurement | ✅ | ✅ | ✅ | ✅ | ✅ |
| Surface Velocity Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Linear Velocity Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Length Measurement Capability | ✅ | ✅ | ✅ | ❌ | ❌ |
| Calibration Certificate | Typically Included | Typically Included | Included | Included | Not Specified |
| Carry Case Included | Yes | Yes | Hard Carry Case | Padded Carry Case | Not Specified |
| Power Requirement | Battery Powered | Battery Powered | None | Battery Powered | Battery Powered |
| Made in Germany | Yes | Yes | Yes | Yes | Yes |
| Best Application | All-in-One Speed & Length Measurement | General Industrial Measurement | Mechanical RPM & Length Measurement | Dedicated Non-Contact RPM Measurement | Compact High-Range RPM Measurement |
Application Comparison
| Application | Rotaro T | Rotaro | HTM100M / HTM500M | Redpoint | EchoTach |
|---|---|---|---|---|---|
| Motor RPM Measurement | ✅ | ✅ | ✅ | ✅ | ✅ |
| Pumps & Fans | ✅ | ✅ | ✅ | ✅ | ✅ |
| Turbines | ✅ | ✅ | ✅ | ✅ | ✅ |
| Machinery Commissioning | ✅ | ✅ | ✅ | ✅ | ✅ |
| Preventative Maintenance | ✅ | ✅ | ✅ | ✅ | ✅ |
| Production Monitoring | ✅ | ✅ | ✅ | ✅ | ✅ |
| Textile Manufacturing | ✅ | ✅ | ⚠️ | ❌ | ❌ |
| Wire & Cable Production | ✅ | ✅ | ⚠️ | ❌ | ❌ |
| Conveyor Speed Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Surface Velocity Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Material Length Measurement | ✅ | ✅ | ✅ | ❌ | ❌ |
| Pocket-Sized Portability | ✅ | ✅ | ❌ | ✅ | ✅ |
⚠️ = Possible with suitable accessories but less versatile than the Rotaro range.
Which RheinTacho Tachometer is Right for You?

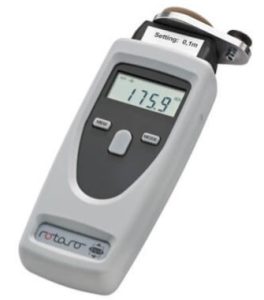

Rotaro T Digital Hand Tachometer
Best for: Users requiring maximum versatility.
- Optical and mechanical measurement in one instrument
- Measures RPM, surface speed, linear speed, and length
- Suitable for yarn, wire, textiles, cables, and continuous materials
- Ideal for maintenance, production, and quality control
Rotaro Handheld Tachometer
Best for: General-purpose industrial speed, velocity, and length measurement.
- Dual optical and contact measurement
- Suitable for machinery and production processes
- Excellent all-round tachometer for industrial environments

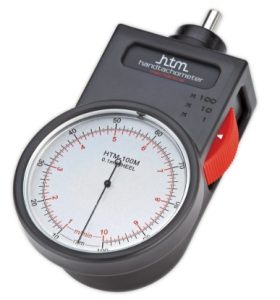

Mechanical Precision Hand Tachometer (HTM100M / HTM500M)
Best for: Traditional mechanical measurement applications.
- No batteries required
- Rugged and reliable
- Available in ranges up to 10,000 RPM or 50,000 RPM
- Suitable for RPM, surface speed, and length measurements

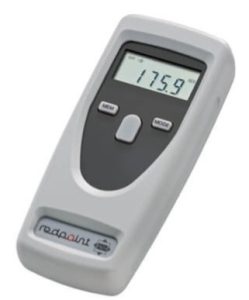

Redpoint Handheld Tachometer
Best for: Fast and simple non-contact RPM measurement.
- Measures rotational speed only
- Optical measurement up to 600 mm
- Complete kit supplied with reflective strips and calibration certificate
- Ideal for maintenance engineers and service technicians
EchoTach Digital Optical Tachometer
Best for: Portable, high-range RPM measurement.
- Ultra-wide measuring range of 1–60,000 RPM
- Compact pocket-sized design
- Optical measurement up to 450 mm
- Excellent resistance to ambient light interference
- Ideal for field service, workshops, and laboratory environments
Quick Selection Guide
| If You Need… | Recommended Model |
|---|---|
| RPM, Speed & Length Measurement | Rotaro T |
| Most Versatile Solution | Rotaro T |
| Traditional Mechanical Tachometer | HTM100M / HTM500M |
| Simple Non-Contact RPM Measurement | Redpoint |
| Compact High-Range Optical Tachometer | EchoTach |
| Textile, Wire & Cable Applications | Rotaro T |
| Maintenance & Service Work | Redpoint or EchoTach |
| Production Line Monitoring | Rotaro T or Rotaro |
Request a Quote
Contact our team today for pricing, availability, and expert advice on the RheinTacho EchoTach Digital Optical Tachometer.
