RT Strobe Laser with Trigger / RheinTacho / RT LED Laser and Trigger Pocket Stroboscope

Specifications

RT Strobe Laser with Trigger
RheinTacho

The new RT STROBE pocketLED LASER with Trigger is the further development of the current portable stroboscopes RT STROBE pocketLED. This portable stroboscope is extended by the innovative auto-sync laser function as well as by the additional application possibilities of a laser-tachometer.
Within the stroboscope mode, the portable multifunction device flashes with up to 999,999 flashes per minute. The quartz accuracy ensures absolute flash precision. 6 extremely bright LEDs ensure an exceptional illumination area.

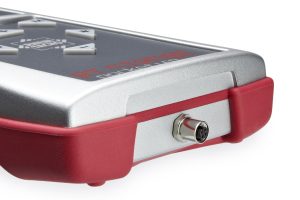

Connect your RT STROBE pocketLED LASER with the device or plant to be monitored via a trigger cable. The trigger interface is designed as a combined input
and output interface. The trigger output allows you to set a flash frequency in the stroboscope and transmit it as a trigger signal to an external device or
machine.
The ergonomically and functionally optimized housing with integrated protective holster fulfils the requirements of protection class IP65. This means the RT STROBE pocketLED LASER is extremely well protected against dust and water jets and thus perfectly suitable for use in rough industrial environments.
By means of a reflective laser beam, The RT STROBE pocketLED LASER offers the possibility to determine the flash rate almost automatically and thus let moving parts appear optically “frozen”. When flash function is disabled, the Stroboscope can function as a laser tachometer.

Downloads

RheinTacho LED Laser Pocket Stroboscope Brochure
