Economical and Versatile Force Measurement from 1 N to 25 kN
Model: S-Beam Load Cell
Supplier: Mecmesin

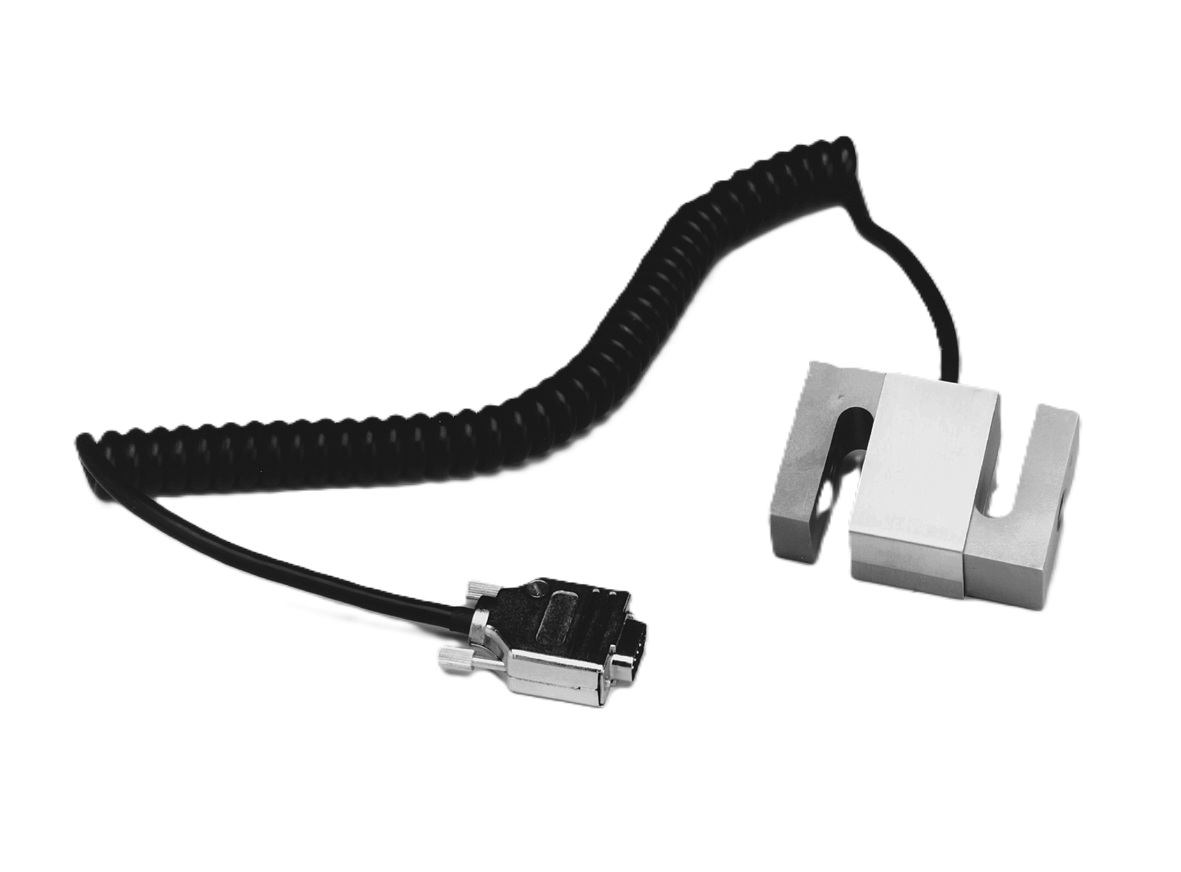

The Mecmesin S-Beam Load Cell is a reliable and cost-effective force measurement solution designed for both tension and compression testing. Suitable for manufacturing, quality control, product validation, and R&D applications, the S-Beam provides the flexibility to measure forces from delicate low-force tests through to demanding industrial applications.
With force ranges from 1 N to 25 kN, and selected configurations available up to 100 kN, the S-Beam is one of Mecmesin’s most versatile force sensors.
The load cell connects directly to a Mecmesin AFTI (Advanced Force & Torque Indicator) or Mecmesin AFG (Advanced Force Gauge). Automatic sensor recognition eliminates manual setup and calibration, allowing users to begin testing immediately.
Key Features
Cost-Effective Force Measurement
Provides an economical solution for a wide variety of force measurement and testing applications.
Tension and Compression Testing
Accurately measures both push and pull forces using a single sensor.
Broad Measurement Range
Available in capacities ranging from 1 N to 25 kN, with specialist high-capacity variants available up to 100 kN.
Automatic Sensor Recognition
When connected to a Mecmesin AFTI or AFG, the load cell is recognised automatically without requiring additional configuration.
Flexible Fixture Mounting
Threaded mounting holes allow custom fixtures and accessories to be attached quickly and securely.
Plug-and-Play Operation
Simplifies implementation in production, laboratory, and quality environments.
Technical Specifications
| Specification | Mecmesin S-Beam Load Cell |
|---|---|
| Model | S-Beam |
| Supplier | Mecmesin |
| Measurement Type | Force Measurement |
| Force Direction | Tension and Compression |
| Standard Capacity Range | 100 N to 25 kN |
| Junior / Miniature Models | 1 N to 500 N |
| High-Capacity Variants | Up to 100 kN |
| Mounting | Threaded Fixture Mounting Holes |
| Compatible Indicators | Mecmesin AFTI, Mecmesin AFG |
| Sensor Recognition | Automatic |
| Calibration Requirement | None when connected to AFTI or AFG |
| Applications | Force Testing, Product Validation, Quality Control |
Available Force Ranges
Junior / Miniature Models
Designed for precision low-force applications.
- 1 N
- 2 N
- 5 N
- 10 N
- 20 N
- 50 N
- Up to 500 N
Standard S-Beam Models
Suitable for most industrial testing applications.
- 100 N
- 250 N
- 500 N
- 1 kN
- 2.5 kN
- 5 kN
- 10 kN
- 25 kN
High-Capacity Variants
Available for demanding industrial applications.
- Up to 100 kN*
*Dependent on model and configuration.
Benefits for Quality Engineers
Faster Setup
Automatic sensor recognition reduces setup time and simplifies deployment.
Consistent Measurement Accuracy
Provides repeatable and reliable force measurement results across multiple testing applications.
Flexible Testing Capability
A single platform can support a wide range of test requirements by selecting the appropriate load cell capacity.
Reduced Operator Error
Plug-and-play operation eliminates manual calibration and configuration mistakes.
Improved Product Quality
Supports process validation, quality inspection, and product verification activities.
Easy Integration
Compatible with Mecmesin indicators, gauges, test stands, and custom fixturing.
Industries Using S-Beam Load Cells
The Mecmesin S-Beam is widely used across multiple industries where accurate force measurement is essential.
| Industry | Typical Applications |
|---|---|
| Manufacturing & Quality Control | Product testing, assembly verification, process validation |
| Autom* | Component testing, pedal force testing, assembly verification |
| Aerospace | Structural testing, actuator testing, component validation |
| Medical Devices | Syringe testing, catheter testing, device actuation force measurement |
| Electronics | Connector insertion testing, switch testing, button force measurement |
| Packaging | Seal strength testing, opening force testing, packaging validation |
| Consumer Products | Durability testing, usability testing, compliance testing |
| Research & Development | Product development, material analysis, prototype validation |
| Universities & Laboratories | Engineering research and educational testing |
| Industrial Automation | Machine validation, process force monitoring |
| Materials* | Tensile, compression and break testing |
| Food & Beverage | Packaging force and closure testing |
Typical Applications
Manufacturing Quality Control
- Product verification
- Process validation
- Assembly force testing
- Incoming goods inspection
Automotive Testing
- Switch actuation testing
- Component validation
- Assembly verification
- Material testing
Medical Device Testing
- Device usability testing
- Product validation
- Precision force measurement
Electronics Testing
- Push-button force testing
- Connector insertion testing
- Component verification
Research & Development
- Prototype evaluation
- Material characterisation
- Comparative product testing
Mecmesin Force Sensor Comparison
How Does the S-Beam Compare?
The S-Beam is designed as a highly versatile, general-purpose force measurement sensor. Other Mecmesin force sensors are optimized for specific testing requirements.
| Feature | S-Beam Load Cell | Smart Load Cell (SLC) | Junior Load Cell | Extended Load Cell (ELC) |
|---|---|---|---|---|
| Primary Use | General-purpose force measurement | Flexible laboratory and production testing | Low-force precision measurement | Heavy-duty industrial testing |
| Force Direction | Tension & Compression | Tension & Compression | Tension & Compression | Tension & Compression |
| Typical* | 1 N to 25 kN | Multiple capacities available | Low-force applications | Medium to high-force applications |
| Fixture Mounting | Threaded mounting holes | Multiple fixture options | Compact fixture mounting | Heavy-duty fixture mounting |
| Portability | Moderate | High | High | Moderate |
| AFTI/AFG Compatibility | Direct plug-and-play | Direct plug-and-play | Direct plug-and-play | Direct plug-and-play |
| Best For | Production, QA, R&D | Multi-purpose testing environments | Delicate and small-component testing | High-capacity industrial testing |
| Cost Level | Economical | Medium | Economical | Premium |
Which Mecmesin Load Cell Is Right for You?
Choose the S-Beam When You Need:
✅ General-purpose force measurement
✅ Both tension and compression testing
✅ A wide force measurement range
✅ Flexible fixture mounting
✅ Excellent value for money
✅ Quality control and production testing
Typical S-Beam Applications
- Assembly force verification
- Press-fit testing
- Pull-off testing
- Product testing
- Material testing
- Durability testing
Choose a Junior Load Cell When You Need:
✅ Very low-force measurements
✅ Testing delicate products
✅ High sensitivity for small components
Typical Applications
- Switch actuation testing
- Connector insertion testing
- Medical device testing
- Small spring testing
Choose a Smart Load Cell (SLC) When You Need:
✅ Maximum testing flexibility
✅ Frequent test changes
✅ Multi-user laboratory environments
✅ Product development and R&D
Choose an Extended Load Cell (ELC) When You Need:
✅ Higher force capacities
✅ Large assemblies and fixtures
✅ Heavy-duty industrial testing
Typical Applications
- Automotive components
- Industrial machinery
- Packaging equipment
- Construction materials
Why Choose the Mecmesin S-Beam?
The Mecmesin S-Beam Load Cell delivers an ideal balance of cost, versatility, ease of use, and measurement range. It remains one of the most popular force sensors for manufacturing, quality assurance, laboratory testing, and product development applications.
Key Advantages
- Economical force measurement solution
- Measures both tension and compression
- Capacities from 1 N to 25 kN
- High-capacity options up to 100 kN
- Automatic sensor recognition
- No manual calibration required
- Compatible with Mecmesin AFTI and AFG instruments
- Flexible fixture mounting options
- Suitable for laboratory and production environments
- Reliable and repeatable measurement performance
